High Frequency Technology


  • Along with an accelerated transmission signal, provides a circuit board where impedance is coordinated with built-in components.
  • A high-frequency printed circuit board is provided by means of optimal substrate selection, a layered configuration, and circuit planning - all made possible by in-house simulation software. A huge database makes impedance control possible.

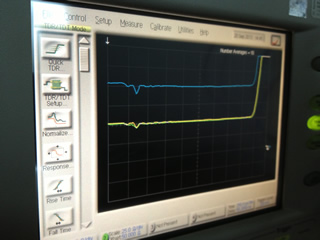

  • Test coupon impedance measured by in-house measuring equipment (TDR). Supported at Z0±7%, ±5% for trial manufacturing.
